When it comes to protecting your home or business, not all locks are built the same.

A standard deadbolt may look strong from the outside, but much of a lock’s security comes from what is happening inside the cylinder.

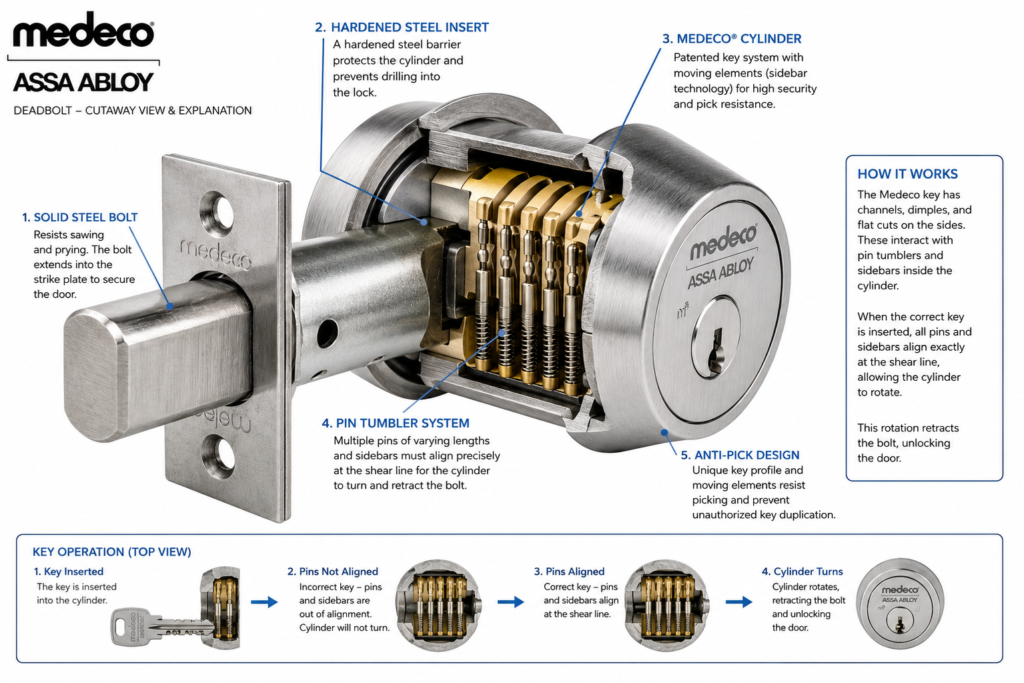

The cutaway image above gives you a look inside a Medeco high-security deadbolt and shows several of the components that make this type of lock different from a conventional pin-tumbler lock.

Medeco, an ASSA ABLOY company, has developed high-security mechanical lock systems that combine physical protection with sophisticated key and cylinder technology. Current Medeco 4 systems, for example, incorporate rotating tumblers, side pins, sidebar locking and hardened-steel protection designed to increase resistance to physical and surreptitious attacks.

For homeowners, business owners, property managers and anyone responsible for building security, understanding these components can help when deciding whether a standard lock or a high-security locking system is appropriate.

What Is a Medeco High-Security Lock?

A Medeco high-security lock is a mechanical locking system designed to provide additional protection against unauthorized entry and unauthorized key duplication.

Unlike a basic pin-tumbler lock that primarily relies on the correct key height to operate the cylinder, Medeco systems can use multiple locking elements that have to interact correctly before the cylinder can rotate.

Depending on the specific Medeco technology and cylinder, those features can include:

• Rotating pin tumblers
• Side pins
• Sidebar mechanisms
• Hardened-steel components
• Restricted key systems
• Patented key designs
• Additional protection against drilling and picking

Medeco’s specifications describe its high-security cylinders as using multiple locking elements and hardened-steel protection around critical cylinder components.

Important: Medeco has several generations and product families. The exact internal configuration depends on the specific cylinder, so the cutaway should be viewed as an educational representation rather than a universal diagram of every Medeco lock.

Understanding the Medeco Lock Cutaway

Let’s look at the major components shown in the illustration.

1. Solid Steel Deadbolt

The deadbolt is the large metal component that physically extends into the door frame.

When the lock is secured, the bolt extends into the strike area of the door frame, creating a strong mechanical connection between the door and frame.

A properly installed deadbolt is important because even an advanced cylinder cannot compensate for weak door hardware, a poorly reinforced frame or inadequate installation.

For this reason, a locksmith should evaluate the entire door security system, not just the cylinder.

2. Hardened-Steel Protection

One of the important features found in Medeco high-security cylinders is additional protection around critical internal components.

Medeco’s technical specifications describe strategically positioned hardened-steel inserts intended to provide additional resistance against drilling and other forms of physical attack.

This is important because a high-security cylinder isn’t simply designed to make picking more difficult.

The cylinder also has to be engineered to withstand physical attacks against the hardware itself.

3. The Medeco Cylinder

The cylinder is the portion of the lock that contains the keyway and internal locking mechanism.

This is where the security technology becomes considerably more sophisticated than a conventional lock cylinder.

The exact design depends on the Medeco product generation. Medeco 4, for example, incorporates rotating pins along with side pins and a sidebar mechanism.

The objective is straightforward:

The correct key must interact with multiple components correctly before the cylinder can rotate.

That additional complexity is one reason high-security cylinders can provide substantially different protection than basic residential cylinders.

4. Pin Tumbler System

Traditional pin-tumbler locks use pins and springs that must reach the appropriate position before the plug can rotate.

Medeco’s technology adds additional movement to this concept.

Medeco describes its systems as using tumblers that can lift and rotate, with additional side-pin/sidebar interaction.

This means the lock isn’t simply looking for the correct vertical key cut.

The key has to interact with the internal components in the intended way.

That creates an additional layer of security compared with a basic cylinder.

5. Sidebar and Side-Pin Technology

One of the most interesting features inside a Medeco high-security cylinder is the sidebar system.

The sidebar acts as an additional locking element inside the cylinder.

The correct key must position the internal components so that the sidebar can move into the appropriate position, allowing the cylinder to rotate.

Medeco’s documentation describes side pins and sidebar locking as part of its high-security cylinder design.

This creates another barrier that an unauthorized key has to overcome.

How Does the Medeco Key Work?

A Medeco key is different from a basic house key.

Depending on the Medeco technology, the key can contain specially engineered cuts and side features that interact with the cylinder’s internal components.

For Medeco 4, the manufacturer describes angled key cuts, rotating pins, secondary side bitting and a movable element in the key.

In simplified terms:

Key inserted → internal components move → pins rotate/elevate → side elements align → sidebar releases → cylinder rotates → deadbolt operates.

The important concept is that several elements have to work together.

Why Is Medeco Considered a High-Security Lock?

There are several reasons Medeco systems are used when additional security is required.

Physical attack resistance

Medeco high-security cylinders incorporate features intended to increase resistance against attacks such as drilling and other forms of forced entry. Medeco 4 cylinders are listed by the manufacturer as meeting or exceeding specified ANSI/BHMA high-security criteria and UL 437 requirements.

Pick resistance

The combination of rotating tumblers, side pins and sidebar locking adds complexity beyond a conventional pin-tumbler cylinder.

Key control

One of the biggest differences between high-security key systems and ordinary locks is key control.

With a conventional key, obtaining a duplicate can often be relatively easy.

Restricted Medeco key systems are designed to control who can obtain authorized key blanks and duplicates. Medeco describes its restricted-key systems as requiring authorization and specialized key-cutting processes.

That can be particularly important for:

• Businesses
• Offices
• Apartment buildings
• Property managers
• Medical facilities
• Warehouses
• Retail stores
• Multi-tenant buildings

Medeco Locks for Homes

High-security locks aren’t only for commercial properties.

A homeowner may consider a high-security cylinder when protecting:

• A primary residence
• A vacation home
• A high-value property
• A home office
• A garage or side entrance
• A property with multiple exterior doors
• A home where key control is especially important

For example, if multiple contractors, employees, previous occupants or other individuals have had access to keys over the years, upgrading the locking system can provide greater control over who has authorized access.

Medeco Locks for Businesses

Commercial properties often have a much bigger key-management problem than a typical home.

Imagine a business with:

1 building → 10 doors → 20 employees → multiple managers → contractors → maintenance personnel.

The number of physical keys can quickly become difficult to control.

A restricted high-security key system can help establish a more organized access system.

Medeco also supports master-keying capabilities for appropriate systems, allowing different levels of access to be incorporated into a larger locking system.

A locksmith can evaluate the property and determine which cylinders, keying arrangements and hardware are appropriate.

Medeco Rekeying and Lock Service

One common misconception is that upgrading security always means replacing the entire lock.

In many situations, a locksmith may be able to service or rekey an existing high-security cylinder depending on the product and application.

Fine Locksmith USA provides rekeying services for high-security systems including Medeco and Mul-T-Lock.

Rekeying can be useful after:

• Moving into a new home
• Employee turnover
• Tenant turnover
• Lost or stolen keys
• Changes in property management
• Contractor access
• Security upgrades

The goal is to ensure that previously issued keys no longer provide unauthorized access while maintaining compatible hardware where possible.

Do You Need a High-Security Lock?

Not every door requires a high-security cylinder.

For many residential applications, a quality conventional deadbolt that is correctly installed may provide adequate protection.

However, a high-security system may be worth considering when key control and resistance to physical attacks are important priorities.

Consider a high-security system if:

• You have experienced repeated security concerns.
• You manage a commercial property.
• Many people have keys to the building.
• You need controlled key duplication.
• You operate a master-key system.
• You want additional protection around the cylinder.
• You own a high-value property.
• You manage rental or multi-unit properties.

A professional locksmith can inspect the existing door, frame, lock, cylinder and strike hardware and recommend an appropriate solution.

High-Security Lock vs. Standard Deadbolt

Note: Features vary by Medeco product generation and cylinder model. Always verify the specifications of the particular lock being installed.

Why Professional Installation Matters

A high-security cylinder is only one part of a door’s security.

The overall system can include:

• Door construction
• Door frame
• Strike plate
• Strike reinforcement
• Deadbolt
• Cylinder
• Mounting hardware
• Hinges
• Key control
• Installation quality

A premium lock installed incorrectly can still leave vulnerabilities elsewhere in the door.

That’s why a professional locksmith should inspect the complete opening before recommending an upgrade.

Fine Locksmith USA — Medeco High-Security Locksmith Services

If you’re considering upgrading the locks on your home or business, Fine Locksmith USA can help evaluate your existing hardware and determine whether a high-security locking system is appropriate.

Fine Locksmith USA provides residential and commercial locksmith services throughout South Florida, including lock installation, rekeying, lock repair and high-security lock service. The company’s existing service information specifically notes service for restricted-keyway systems such as Medeco and Mul-T-Lock.

Whether you need a single high-security deadbolt for your home or a larger key-control system for a commercial property, the right solution starts with understanding the door and access requirements.

Need help with your locks? Contact Fine Locksmith USA today.

Call: (954) 420-7121

Frequently Asked Questions

Are Medeco locks harder to pick?

Medeco high-security cylinders incorporate additional locking elements such as rotating tumblers, side pins and sidebar mechanisms. These features are designed to increase resistance to picking and other forms of unauthorized entry.

Can a Medeco lock be rekeyed?

Many Medeco cylinders can be serviced or rekeyed, depending on the specific product and configuration. A qualified locksmith should identify the cylinder before determining the appropriate service.

Can anyone duplicate a Medeco key?

Restricted Medeco key systems are designed to control key duplication. Certain systems use patented/restricted key blanks and authorized duplication processes.

Are Medeco locks good for businesses?

Yes. High-security key systems can be particularly useful for businesses that need controlled key duplication, master-key capabilities and additional protection for important entrances.

Can Medeco locks be installed on residential doors?

Yes. Medeco offers deadbolt and cylinder products for residential and other applications. The correct product depends on the door and existing hardware.

Is a high-security lock worth it?

It depends on your security requirements. If controlled key duplication, physical attack resistance or managing access for multiple people is important, a high-security locking system can be a worthwhile upgrade.

Final Thoughts

A lock may look simple from the outside, but the real engineering is happening inside the cylinder.

The Medeco cutaway demonstrates an important principle of physical security:

Security isn’t just about having a strong-looking lock. It’s about how the individual components work together.

Rotating tumblers, side pins, sidebar mechanisms, hardened-steel protection and controlled key systems can create multiple layers of protection beyond what is found in many conventional cylinders.

If you’re unsure whether your home or business would benefit from a high-security lock, have a professional locksmith inspect your existing hardware and recommend the appropriate solution.
